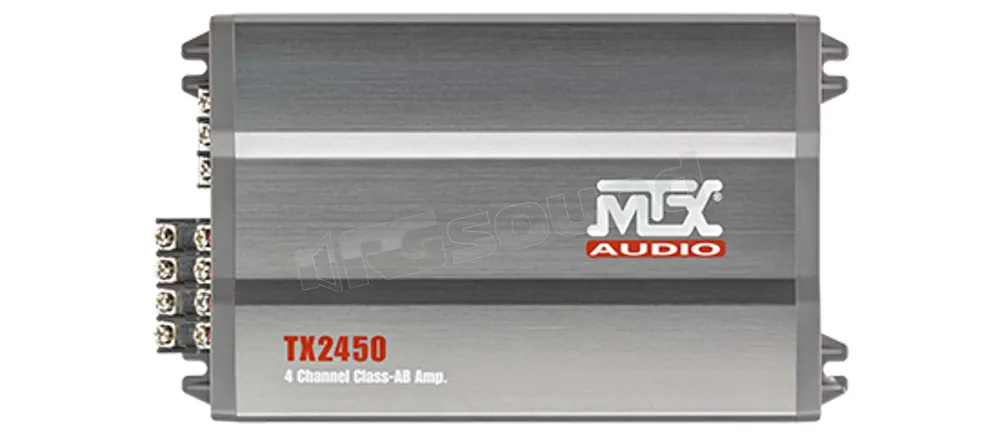

Amplificatore TX2 450 classe AB 4×50/75 W @ 4/2 Ohm
Specifications :
2-Channel Class-AB wide range amplifier
CEA2006 certified Power Output :
– 4x75W RMS @2Ω and THD+N ≤1%
– 4x50W RMS @4Ω and THD+N ≤1%
– 2x150W RMS bridged @4Ω and THD+N ≤1%
Crossover :
– High pass 12dB/oct, variable from 50Hz to 120Hz
– Low pass 12dB/oct, variable from 50Hz to 120Hz
Signal-to-Noise Ratio (1 Watt) : > 73dB
THD+Noise (Distortion) (1 Watt) : ≤ 0,2%
Frequency Response (±1dB) : 10Hz-60000Hz
Maximum Input Signal : 6V
Maximum Sensitivity : 200mV
Dimensions : 220x135x52mm
High level inputs
Optional EBC remote control (EBC-1)
Features :
Wide range Class-AB amp for speakers and subwoofer
Bridge mode for a subwoofer or an enclosure
Optimized for 2Ω loads in stereo and 4Ω loads in bridge mono
12dB/Oct high-pass or low-pass x-overvariable from 50 to 120Hz for speakers or subwoofer
Full aluminum construction
Optimized for RTE12AS, RTE12AV, RTF10AS, RTT12AV, TR12AV, RT10AS, RT12AV
Optional EBC remote control sold separately (Reference : EBC-1)
